la storia
xl 250 - 1972 / 1976

La rubrica è in lingua inglese, con il tempo provvederemo a tradurla al fine di essere fruibile da tutti. Grazie

Honda
XL250K0 The Honda Motosport 250 XL250 was sold in 1972-73. One color was available: Custom Silver Metallic. The fuel tank, fenders, and headlight shell were silver while the fuel tank stripes and fender stripes were red. The "MOTOSPORT 250" muffler emblem was red and white. The side cover was black without emblems. The engine was a 248cc 4-stroke OHC 4-valve single cylinder with a 5-speed transmission. The frame serial number began XL250-1000049 while it is significant that the engine serial number began SL250E-1000001 rather than XL -- which shows its relation to the Motosport series.

XL250K1 The XL250 K1 was sold in 1974 in tornado Blue Metallic. The gas tank stripes were orange and black. The "XL250" muffler and side cover emblems were orange and white. The side cover and headlight shell were black. The instrumentation was tilted toward the rider. The engine was a 248cc 4-stroke OHC 4-valve single cylinder with a 5-speed transmission. The serial number began XL250-2000001. The engine serial number began XL250E not SL250E.

XL250K2 The XL250 K2 was sold in 1975 in Excel Black with Red. The gas tank was a 2-tone red and black. The fenders and side covers were black. The "XL250" muffler and side cover emblems were red and white. The headlight shell was silver. The engine was a 248cc 4-stroke OHC 4-valve single cylinder with a 5-speed transmission. The serial number began XL250-3000001.

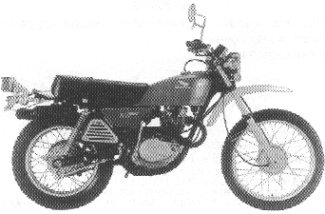

XL250'76 The XL250 '76 was sold in 1976 in one color: Candy Sapphire Blue with white. The gas tank and side covers were blue. The fenders were white, color impregnated plastic. The frame was new and the chassis design featured an upswept exhaust. The intake manifold was center mounted. The engine was a 248cc 4-stroke OHC 4-valve single cylinder with a 5-speed transmission. The serial number began XL250-4000001.
